Li-Ion battery technology update. (From #idf09 session)

Posted on 22 September 2009, Last updated on 19 November 2012 by

I’m reporting from the IDF09 battery technology session.

Here’s what’s been happening in Li-Ion tech.

 Capture_00004

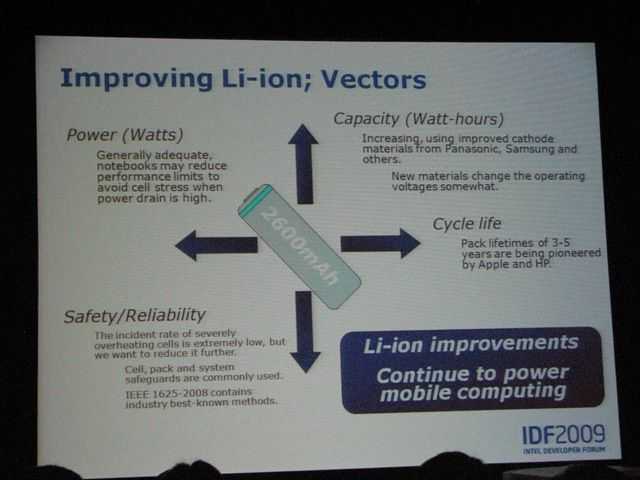

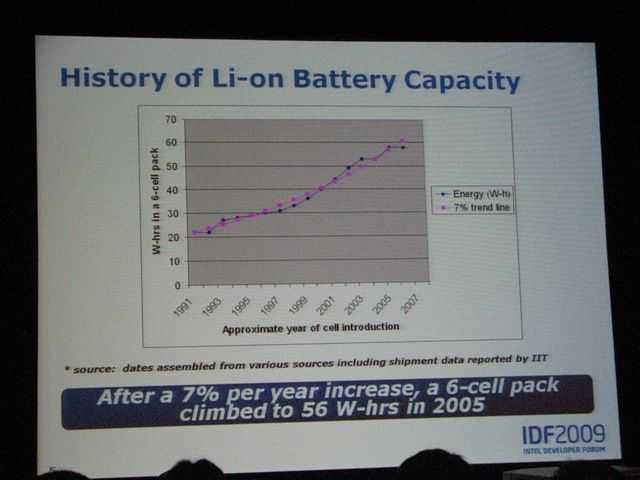

“3% per year improvements in capacity (watt-hours) inch If you ask me, that’s peanuts. Chemistry research not keeping up with Moore’s Law ;-)

Capture_00005

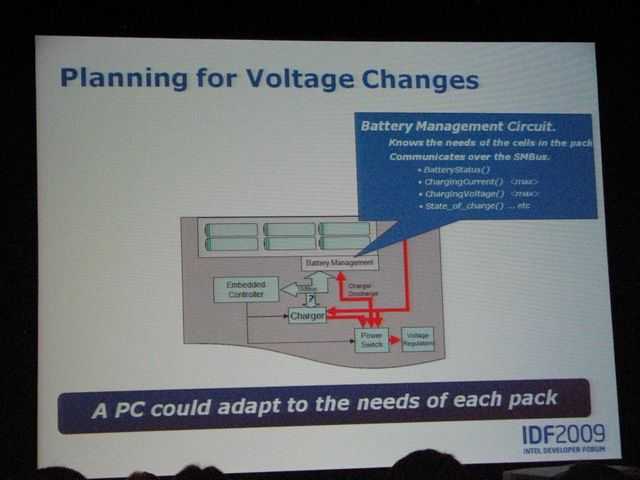

Battery packs aren’t just cells…

Capture_00008

11:27 am.

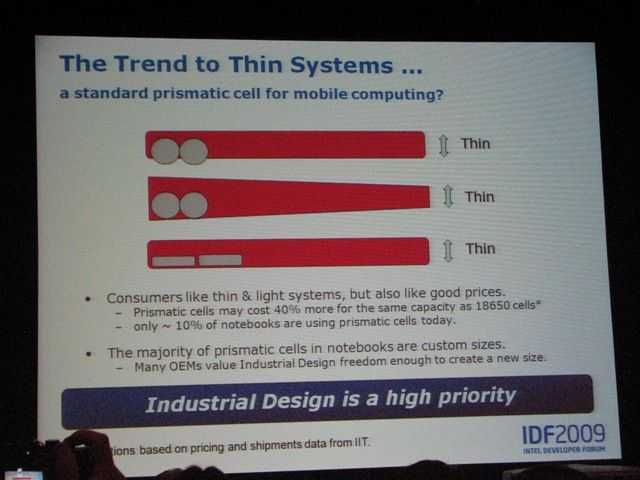

Trends Thin and light systems and their effect on battery packs. Here;s a nice diagram that explains how cell types affect design.

Prismatic cells 40% more expensive for same capacity.

Capture_00009

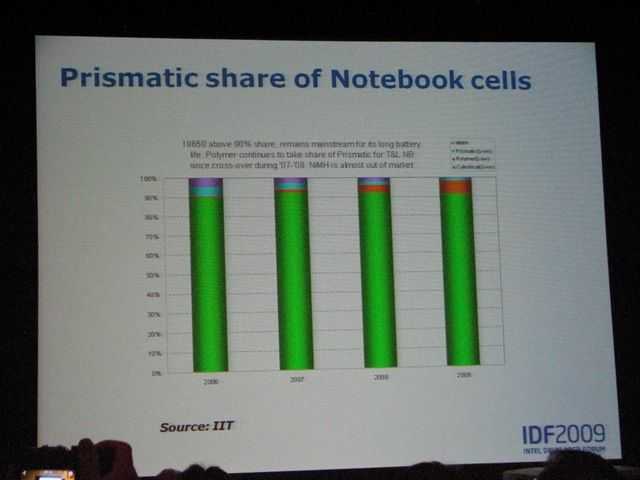

Clearly cylindrical cells are more common.

Capture_00010

Next few years:

More than 2600mah in a standard cell. (the ‘18650’ cell)

11:30 Sasmung now talking.

Capture_00013

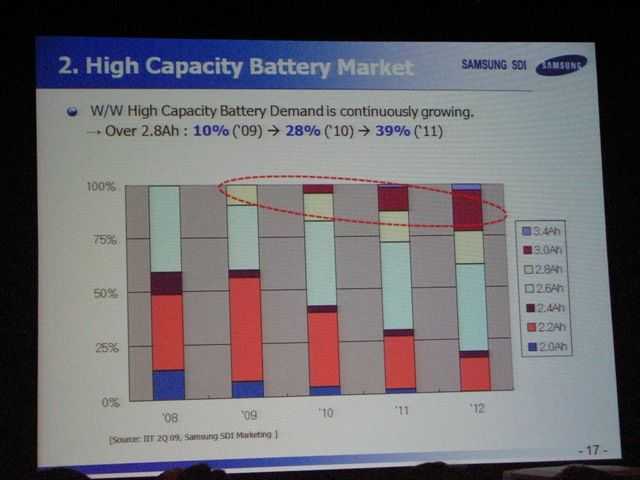

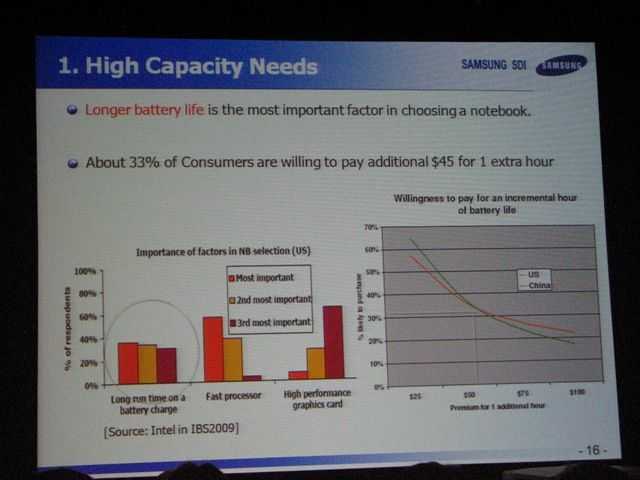

Samsung say 33% of customers willing to pay $45 for an extra hourCapture_00015

Capture_00014

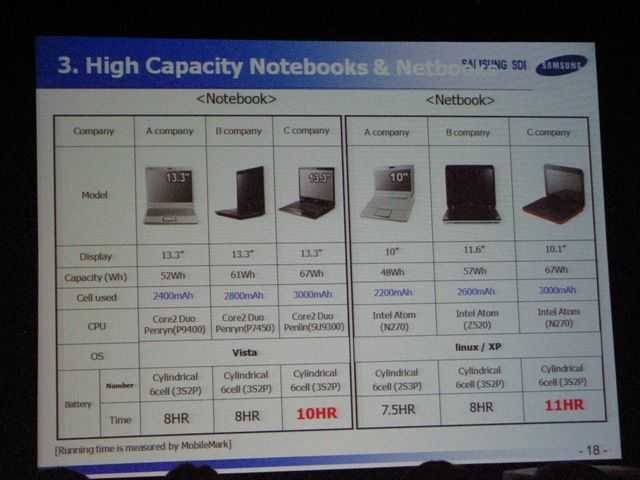

Capture_00017

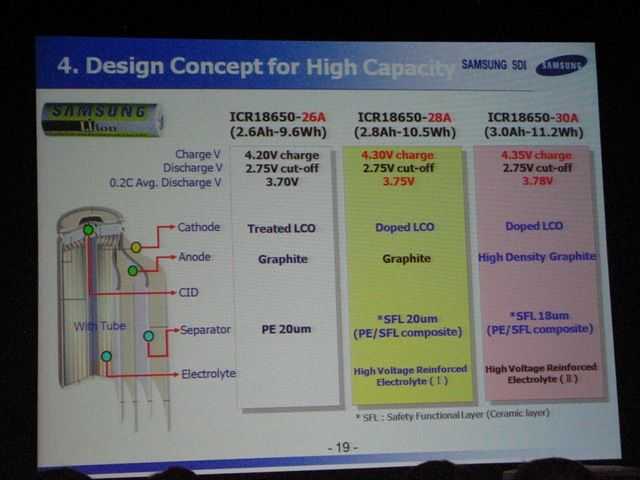

Inside a Samsung Cell.

Capture_00018

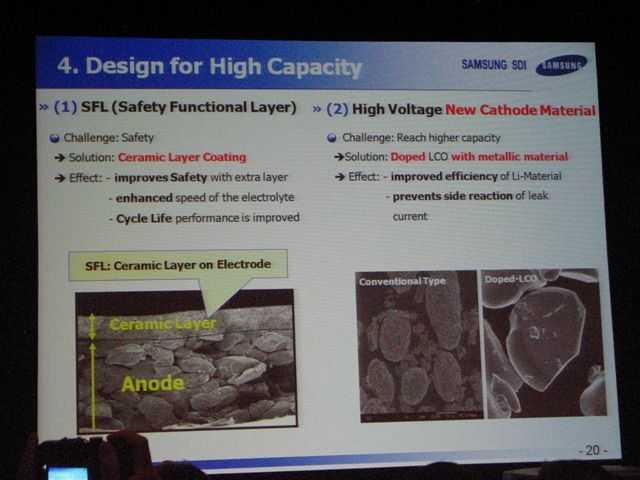

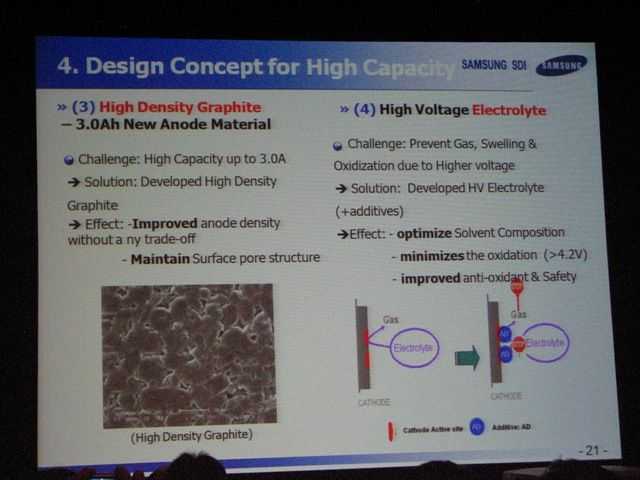

Getting technical now…. Samsungs secret sauce for 3.0A

Capture_00020 Capture_00019

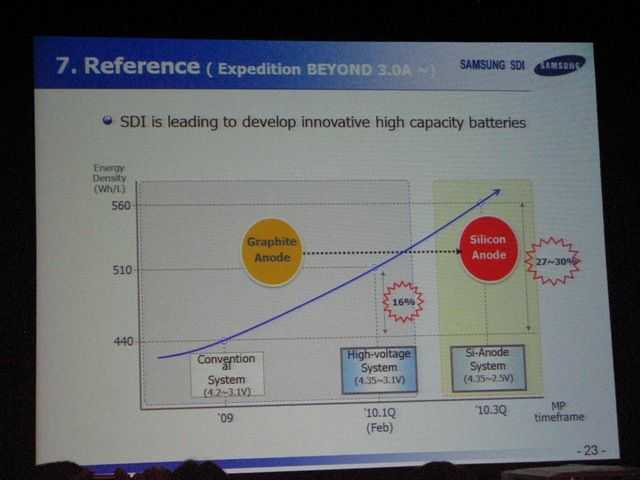

New technologys…. Silicon based anode. Getting too technical for me here!!!!

Bottom line: 30% improvement in Q3 2010. Sounds too good to be true. I’ve heard these sort of promises before!

Capture_00022

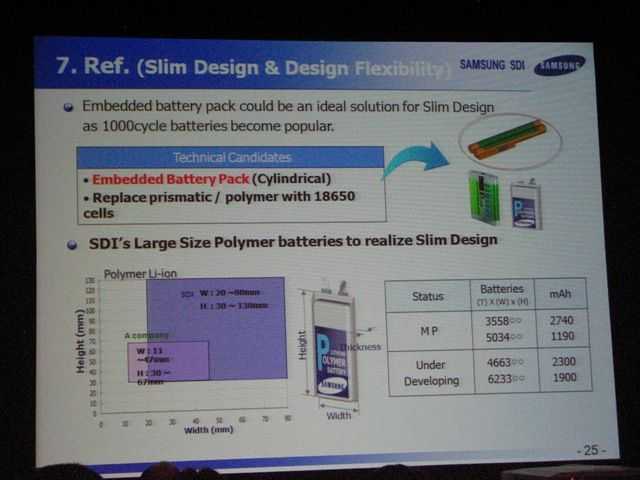

Capture_00025

11:42 Panasonic presenting…

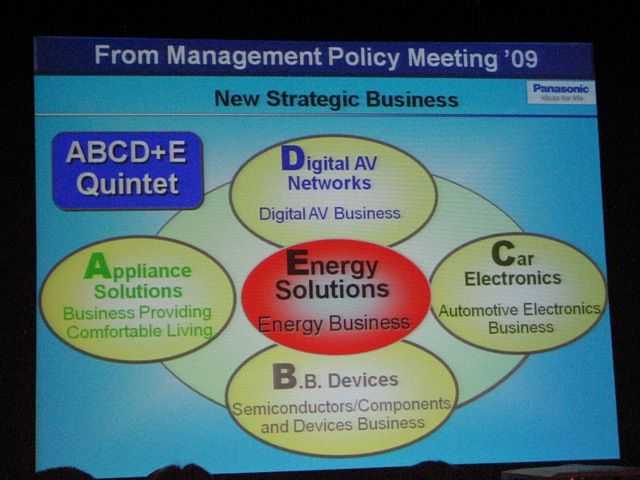

Strategy slide:

Capture_00026

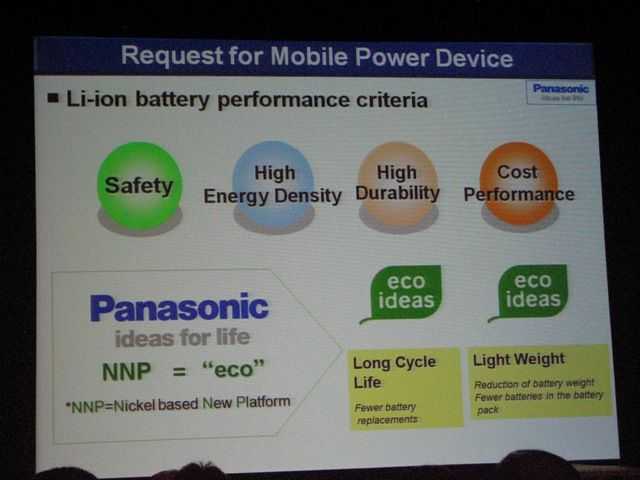

NNP Nickel-based New Platform announced.

Capture_00028

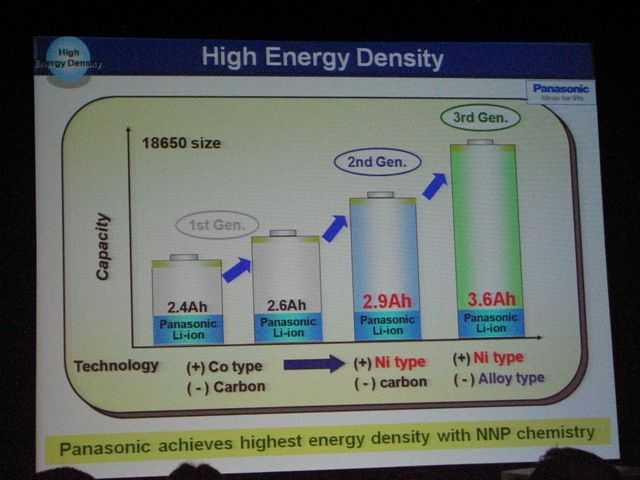

Generations of Li-Ion Li-Ion cells. 2nd generation is the currently available technology.

Capture_00030

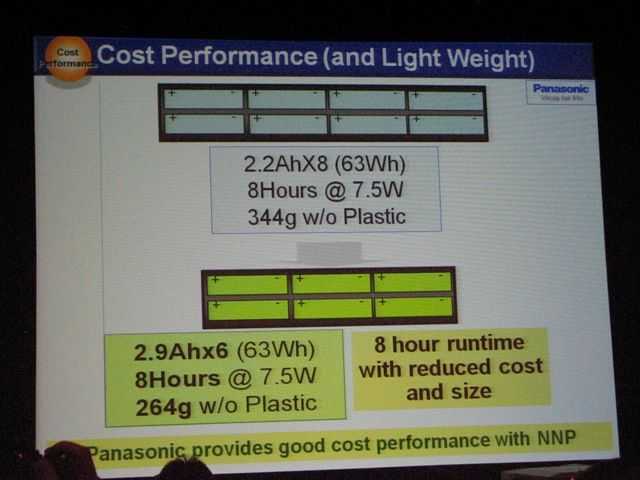

Reducing pack size to save money with higher-capacity cells.

Capture_00033

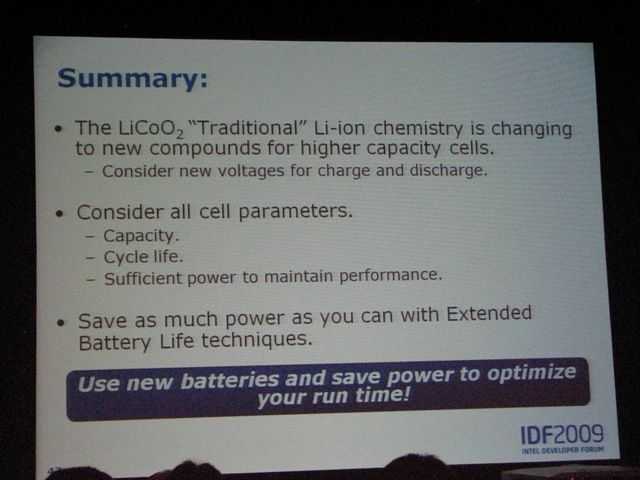

11:55 Intel summary slide.

Capture_00036



That’s all from the battery technology session at IDF09. I’ll continue to report on mobility topics at MeetMobility so check back regularly for updates.

1 Comments For This Post

  1. anon says:

    In recent years we’ve heard of nanowire li-ion batteries, new cathode materials/structures that improve charging speed etc. and all sorts of discoveries that have been cautiously predicted to exit the laboratories and enter the markets within about a decade. It was nice to read about the short term visions for a change!
