Kupa X11 Unboxing Video and First Impressions – A True 10hr 1KG TabletPC

Posted on 20 March 2012, Last updated on 03 January 2014 by

I’m looking back on UMPCPortal to see how long it’s been since we’ve had hands-on with a 1KG, ≤ 10 inch  PC…..In Sept 2011 we covered the MSI Windpad 120W which didn’t make it to market. There was also the Fujitsu TH40/D which also doesn’t seem to have made it to the market. I also had some hands-on with the new Gigabyte S1081 Windows tablet at CES (which I forgot to post here, sorry here’s the video.)  I know I’ve missed a few in between (for example the Viewsonic Viewpad 10 Pro) but you can’t deny that times are tough for the Windows road-warrior.

How stimulating it is to have the Kupa X11 [details] here for testing!

Kupa unboxing video

In terms of specs the Kupa X11 looks good. Yes, there’s a 1.5Ghz Atom inside which won’t impress anyone looking for CPU specifications but it’s turning in 1800ms on Sunspider and has been coupled with a PowerVR SGX 535, 64GB SSD and 2GB of RAM so it’s not exactly lagging in the current tablet space.

There’s a dual-mode screen (capacitive and digitiser) and a huge battery which I’ll mention again below. The screen is a good, 1366×768 resolution which is enough for Windows 8 Metro usage. You won’t find many Tablet PC’s with a 10 inch screen and this resolution today although in 6 months, it could be a different story. In this ‘Pro’ version, there’s a 3G module too. You don’t get a VGA port, USB3 port, docking port or stand though.

Obviously the Kupa X11, at 1KG in weight, is focused towards the pro-mobile user but the packaging is very much consumer-oriented. The build quality matches the packaging too with good plastics and metal and a solid feel. It’s a little dense for a 10 inch tablet but that’s mainly because the ARM-based tablets I’ve used recently are around 30% lighter. For a Windows tablet, it’s not bad; especially when you see the battery size. 52Wh is huge, and it shows in battery life. In a 2hr browsing test this evening (low light) I was seeing a consistent 10hr battery life. I’m confident of 8hrs productivity at this stage.

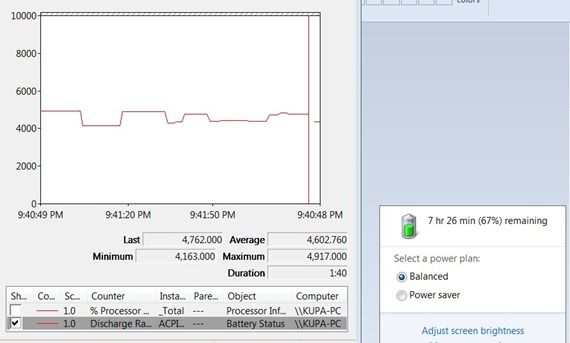

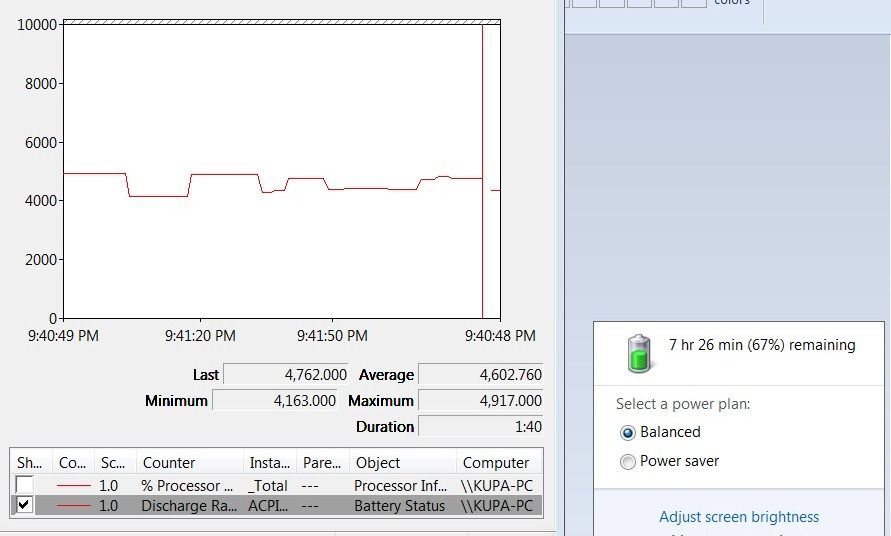

kupa x11 battery life

4.6W average drain for a 10 inch device is excellent. It’s class-leading and showing that the screen and WiFi components are well matched. This test was done with Windows 7 though, I’m expecting an improvement on that with Windows 8 and I’ll be testing that later this week.

Notes:

  • It appears to be fan-less. At least during my 2hr test in a silent room I didn’t hear any noise. There was minimal heat too which is a really good sign.
  • Pressure sensitive digitiser not tested yet.
  • Matt screen cover was included. (I believe this is an optional extra.)
  • 720p YouTube works OK. 720p local H.264 playback tested OK. 1080p not tested yet although I’m expecting it to work OK through the GMA600 GPU.
  • The Windows 7 build was pre-optimized for touch. (Scroll-bars enlarged etc.)
  • Application startup time seems reasonable for a 1.5Ghz Atom-based device.
  • Resume from standby is about 5 seconds. (I will be testing to see how long standby works Kupa are quoting 30 days standby although this could be in hibernation mode.)
  • Frame buttons help with navigation and include a secondary brightness function although the buttons are hard to press.
  • In the video below I mention a micro-SD slot. It isn’t a micro-SD slot, it’s a SIM card slot. There’s no removable SD storage on the Kupa X11
  • I haven’t found a way to lock the auto-rotation yet.
  • Capacitive touch is 2-point multi-touch.
  • 2.0Mp front and 3.0MP rear cam not tested yet.
  • Fingerprint reader not tested yet.
  • SSD speed not tested yet.

Here’s the unboxing and overview video. As it’s effectively a first boot on this video (I had booted it briefly once before but for no more than 5 minutes) Windows 7 was doing a lot of work in the background during this demo so the applications don’t look that good but subsequent tests were much quicker.

Check back for more information coming later this week. If Windows 8 testing goes well I’ll arrange a live session for you too.

7 Comments For This Post

  1. HildyJ says:

    Interesting. Seems too big and too heavy to me, but I’m really waiting for a 7″ 1 lb. Windows tablet to replace my Slate 500.

    Speaking of which, while I agree these are tough times for Window fans, I’d wouldn’t mind seeing your take on the HP Slate 2.

  2. Mongral says:

    Makes my EXOPC Slate look smooth again.

  3. Leiy says:

    The CPU of Kupa X11 is Intel Atom Z2460? It have a PowerVR Graphics inside.

  4. James says:

    No and yes, the Kupa X11 is using a 45nm Oak Trail Z670 and not a 32nm Medfield Z2460. However, it’s still using a GMA based on a PowerVR GPU. Specifically the GMA 600, which is 400MHz GPU based on the old SGX535 and basically a higher clocked version of the old GMA 500.

    Newer chips like Cedar Trail are using GMA 3600 (400MHz) / GMA 3650 (640MHz), based on the slightly higher performing SGX545.

    Advantage to the GMA 600 though is more mature drivers. While there are still a lot of issue for the newer GMA’s and apparently they can’t just update the GMA 500/600 drivers.

    There are also other differences depending on which line of ATOM chips being referred. Like Medfield has both hardware accelerated encoders as well as decoders. While Cedar Trail only has the decoder part…

    Z-Series in general though are intended as extra low power consumption solutions. So performance tends to be lower than the N and D series ATOMs. Though a N2600 1.6GHz dual core Cedar Trail ATOM may be a better solution than this Oak Trail.

    However, 32nm Clover Trail is suppose to come out just before Windows 8 and is rumored to provide dual core and SoC and will likely replace Oak Trail for an even better low power consumption solution.

  5. Leiy says:

    I’m wonder if there have a sub 700g x86 Windows 8 tablet this year that can run 10 hour with a single charge. Although the KUPA X11 make a good impression in battery life.

  6. Luc says:

    Pricing? Searching web seems it starts around $700? Seems too much.

    As we get closer to Windows 8 release we should see several new devices announcements (at least Dell and Nokia are working on it).

    Most devices with 1024×600 resolutions and GMA 500 will work with Metro using registry change: set key Display1_DownScalingSupported to 1. Although most are not <1KG and screen will look squashed bit.

  7. Levine says:

    Did you consider looking at the Samsung slate pc series 7? Im aware that Samsung is running some evaluation tests of the slate with Windows 8 presently. Up to you if you can give your take on that device.
