Intel’s Orchid Island is a Braswell 2-in-1 Reference Design targeting $299

Posted on 08 April 2015, Last updated on 26 January 2020 by

Presented in a technical session at Intel’s IDF in Shenzen today were details about up-coming low-cost tablet and 2-in-1 platforms. The session covered a Core M reference design (used to make the Cube i7 low cost Core M tablet) and talked about the advantages of Atom X5 / X7. They also presented Brawsell as a solution for clamshells and 2-in-1s. Orchid Island is the reference design.

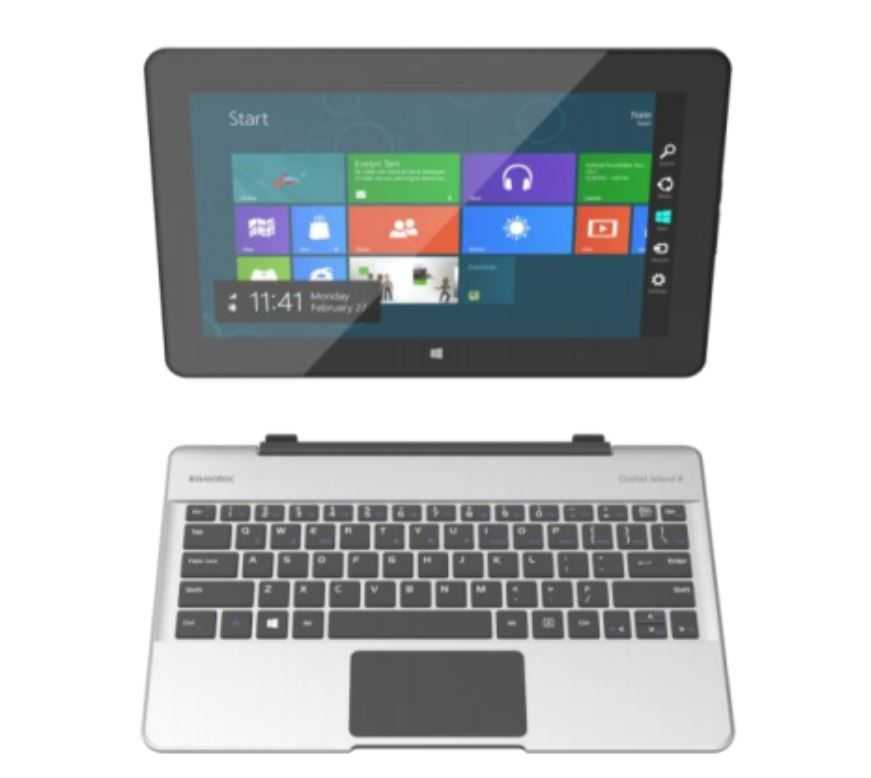

Orchid Island

Orchid Island

It’s build around a Celeron N3000 (Brawsell) and a target price of $299. For $299 – $349 Intel expects you to get a 1366 x 768 11.6-inch multitouch IPS screen with 64GB of eMMC storage and 4GB of RAM. A useful 37 Wh battery is included in the reference design.

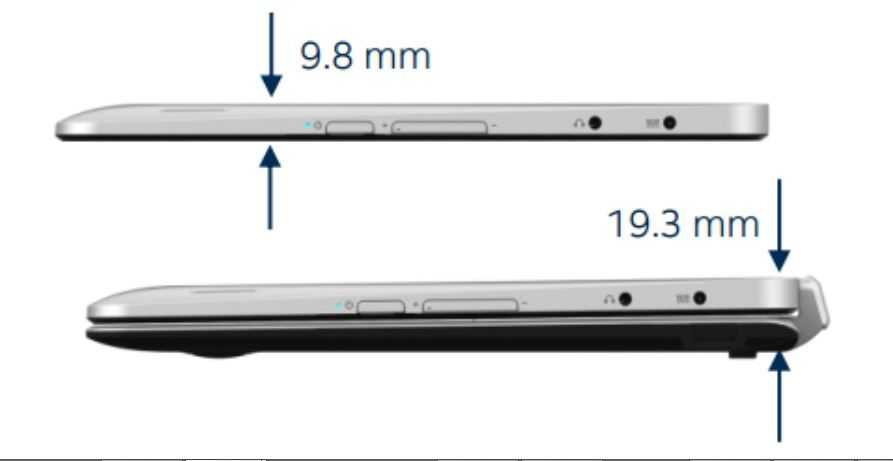

orchid island 2

There’s an HDMI port, USB 3.0 (Braswell does not support USB 3.1) and an SD card slot. The ‘lid’ weighs about 750 grams.  The operating system could be Windows, Android or even Chrome OS. Battery life is said to be up to 11.5% better than systems built on previous generation (Baytrail M) processors.

We’ve previously seen most low-cost 2-in-1s being built on Baytrail-T (now X5 / X7) but it looks like Intel think that the Braswell platform can offer enough for the low-cost market. Lighter solutions with the longest battery life are possible with Atom X5 and X7 but at the end of day it’s the OEMs decision.

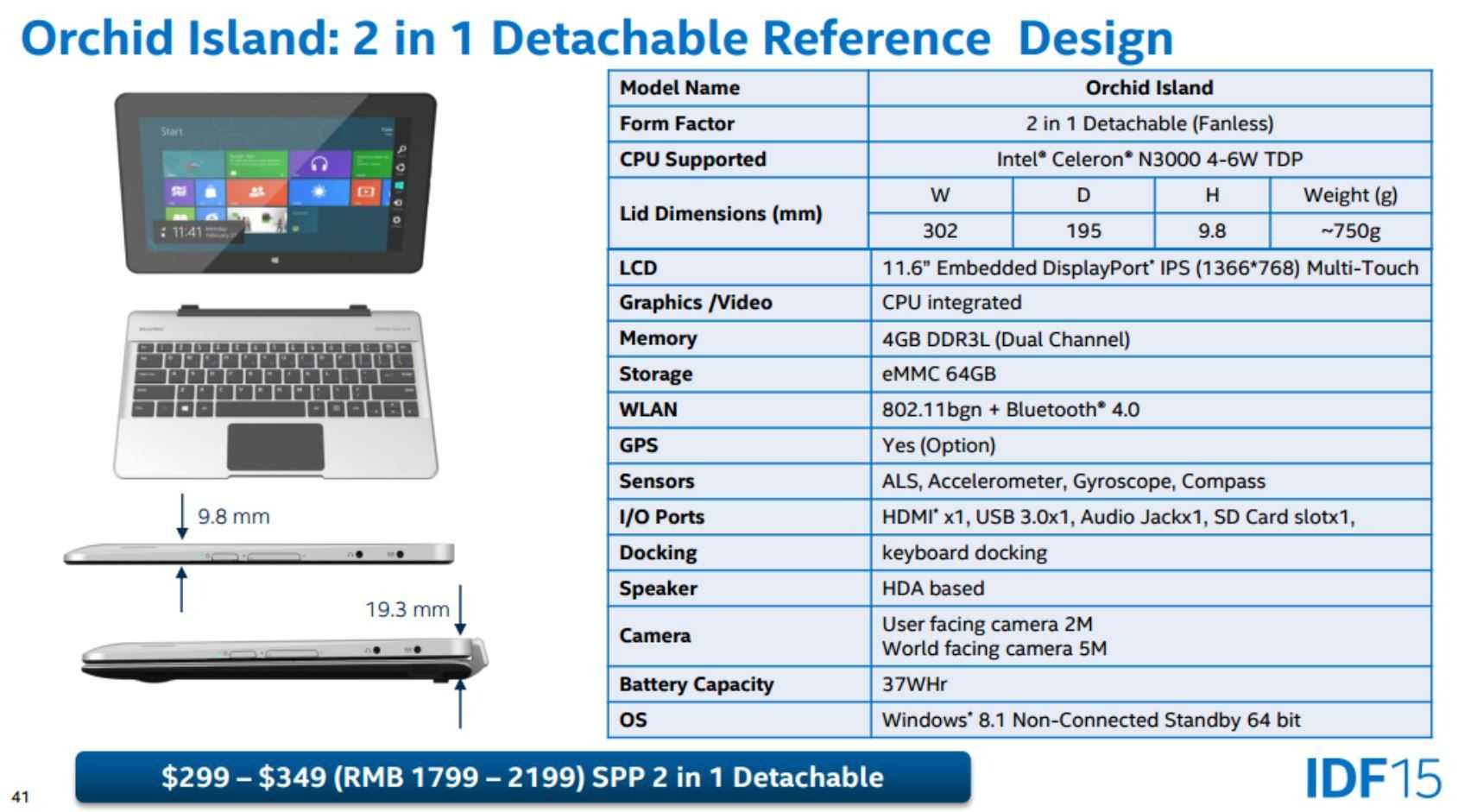

Orchid Island slide from IDF15

Orchid Island slide from IDF15 Source: Intel

1 Comments For This Post

  1. Alva says:

    I wonder if a model based on this design could arrive with connected standby enabled…
    As I understand, it is mainly a matter of having drivers optimized for this low powered mode, right?
