I’ll be hosting 2 live sessions today that I hope you’ll be able to join in on. The first is the MeetMobility Computex Podcast with Sascha and JKK out in Taiwan, myself back in the studio and special guest, Joanna Stern from Engadget joining us from New York. That will start at 1500 CEST (9am New York, 9pm Taipei, other times here.) and you can join in by tuning to MeetMobility.com/live It will be recorded and available later today.

The second event is a live open presentation and Q&A on the Dell Streak. That will start at 2100 CEST (Midday San Francisco, 2000 UK, other times here.)  I don’t have a full retail model but the device I have allows me to show you around the device, demonstrate some features, give you some thoughts and answer your questions. So far the device is living up to all my expectations with the extra bonus that the battery life appears to be better than I thought. Unfortunately JKK can’t join us because he’s still out in Taipei and by the time he gets back to his studio on Wednesday, I’ll be away on another commitment until the week after. We might have a few Streak owners from the UK joining the chat though so it will be the perfect chance to get together to talk about the device from multiple perspectives. Video and chat will be running at Carrypad.com/live. I’ll be bringing the Sony Ericsson X10, Viliv S5 and Archos 5 for comparison. See you there.

Dell Streak and Archos 5 screens

Originally uploaded by umpcportal.com

I’ve got the Dell Streak here and so far I’m really impressed. I’m a big fan of the 4.8″ screen and its ability to give a rich internet experience, a good 1-meter video experience, finger-friendly controls and handheld ‘reader’ experience when in portrait mode. I was under the impression that the Dell Streak was a 4.8″ screen but it’s not. It’s a true 5″ screen. In addition, there are physical Android buttons which remove the need for on-screen buttons and thus same some important screen real-estate. The end effect is shown in the image.

The Streak screen also has amazing contrast. I’m not sure I’ve seen blacks that are so black! I

More on the Dell Streak very soon. First impressions should be ready tomorrow.

Not one, not two and not even three items of internet device news to update you on today. I’ve got no less than five news items here!

Lets start with Dell who’s leader, Mr. Dell, has provided an update on the Mini 5. According to reports, he’s let it be know that the Dell Mini 5 is coming to Telefonica O2 in June and to AT&T in the summer. The source article from EWeek is littered with incorrect information but the important info is that it is very close. Telefonica O2 operate in Spain (where they are launching the Android-powered Compaq Airlife 100 and have a big presence in Germany and UK amongst other countries where they have proven to be quite the progressive carrier in terms of advanced internet devices. Low data prices and multi-SIM options should really help the Dell Mini 5 to get off the ground. I’m expecting a 500 Euro SIM-free price but as yet, we have no real pricing indication.

While the Dell looks to provide the complete Google and voice experience, that’s not the case with the Archos 7 Home Tablet that has just been reviewed by Engadget’s Joanna Stern. At under 200 Euro it’s not quite targeted at the same usage model too. I’m encouraged to hear Joanna talk about a useful form factor but it seems to have been wasted somewhat because there’s no auto, or even manual rotation into portrait mode. Battery life looks good but as we’d expect with an ARM9-powered device, performance is not stunning. Here’s an educated guess you’ll be waiting three times as long for a web page to load compared to the iPad. Casual mobile web browsing, Google Reader and eBooks, video payback, photo viewing, podcast-catching and maybe even a little bit of casual gaming will be possible though and if you can add a portable keyboard, it would make a perfect emergency or travel device. Engadget Review

Lets turn to a device that might be a little more difficult to get hold of now. It’s the very interesting Sharp IS01 clamshell-style, 5 inch Android device. Like the Archos 7 above, it doesn’t have the Google Marketplace so Sharp are trying to seed some applications through their own SDK and a preview version of the device. The final version of the IS01 was due later in the year.

Pocketables have news today that not only is the SDK version ready but the final product will ship much sooner than expected. As soon as next month. While the device is targeted at the Japanese KDDI network, it is possible that some unlocked versions get through as imports and if that happens it will be great to be able to try a high-powered clamshell design using Android.

A device that has completely slipped us by here at Carrypad is something I’m imagining the Archos Gen 8 devices (due summer 2010) will look like. Clearly focused on home media and having a very interesting docking station, 3G and what looks like a capacitive screen, the Huawei Smakit s7 could be competition for the Dell Looking Glass. I’m assuming that Huawei are looking for customers for this though so it’s unlikely that we’ll see it soon but we’ll keep it high on the list as we cruise Computex in June.

BT have announced that they are getting into the home tablet game. The UK-based company broke the news at their strategy day. Apparently the device will be able to take calls, sms’ and will show weather and perform other functions. It will be smaller than the iPad and bigger than an iPhone. To us, it sounds like BT might have lined up to take the Intel Moorestown-powered Open Peek OpenTablet. Watch and wait.

Finally today, I want to highlight that the SmartQ V7, a slightly more powerful version of the Smart Q7 I reviewed,  is about to be launched in Android 2.1 form. Android has been running on the device via firmware updates for a while now but a new Android 2.1 release is due soon. The device, an ARM11-based tablet with a 7 inch resistive touchscreen, should be available in the next few weeks from Eletroworld priced at $230. Expect a similar experience to the Archos 7 Home Tablet although there’s potential for some nice hacks from the busy Smart Q7 community. We should be getting one for review soon after they become available.

That’s it for now. Hope it gives you something to think about at the weekend. Let us know if you have any thoughts on the above.

This article is updated from Jan 2010. See below for history.

The ecosystem around ARM, its designs and licensee products can be difficult to understand so I’ve been researching the current status and have summarized the important products, brands and technologies in the article below. You’ll find details on all the important keywords and technologies, links to all the important CPUs and platforms, a reading list and some ‘tip’s’ for CES2010 which starts this week. All the information is based on my own knowledge and research so if you spot any errors, please be sure to let us all know in the comments. I know there are some CPU designers and ARM partners reading this site so again, if there’s anything that needs changing or adding, please help us all by adding a comment below.

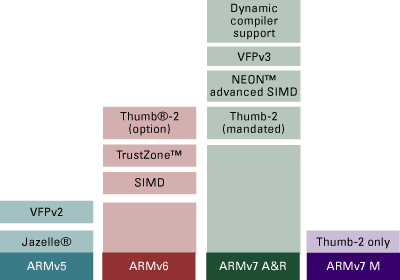

Overview of processor architectures in current ARM products

For the purposes of this article I’m ignoring anything other than ARM v7 architecture CPUs. In my opinion and experience the previous (ARMv6, ARMv5) designs don’t provide the processing power needed for the quality web experience expected in  MIDs. Note: Tegra (current version 2009) is an ARM11 multi-core CPU  implementation based on ARMv6 architecture. I expect Nvidia to move to ARMv7 in their next Tegra product.

ARM v7 is a CPU architecture, not a CPU.

ARM V7 is a processor architecture. It’s a design that belongs to ARM and it can be used to build CPUs that can process around 2 Dhrystone MIPS/Mhz. (Wikipedia Dhrystone) That’s about 2000 DMIPs/Ghz which is not far from the processing power achieved by simple, non-hyperthreading Intel Atom cores also used in MIDs. DMIPs processor performance is not the only measurement of device speed but it’s a good starting point and is relevant to web rendering and web applications.

Processing power

In general, the architecture is being used to make CPUs and platforms running at between 600-1000Mhz (about 1200-2000 DMIPs) although there is one known implementation that has been tested at over 2Ghz. Power consumption per core is said to be around 300mw per 2000DMIPs using the latest manufacturing processes although this figure can vary greatly depending on implementation.

Remember that the CPU core takes only a small percentage of the power drain in a working device where the total in-use power budget including screen lighting, radios, audio, gpu, storage and DC components can span from 2W to 10W. (Texas instruments thinks that a 1W MID is possible though)

In comparison with the Intel Atom CPU the ARM v7 architecture can be used to make CPUs that consume about 1/3 1/5th of the power of an Intel Atom CPU for the same DMIPs computing power.

ARMv7 can also be used to make multi-core CPUs where up to 4 cores can be used to provide over 8000 DMIPS of computing power. (Assuming the software is built to handle multi-processing hardware)

(Further note: All these figures based on research, marketing figures, experience, testing and technical documents that I have read during this research.)

ARM does not manufacture CPUs.

The architecture created by ARM is used to do two things:

• The architecture is used by ARM themselves to make a complete processor implementation which may include other ARM property. The CPU implementation is then licensed out to third parties who can either mass produce the CPU or build and manufacture complete computing platforms including graphics, sound, power, memory, etc. One example is the Ti OMAP 3 and 4-series platforms.
• The architecture gets licensed out to third parties who make their own processors and platforms based on it. One example is the Qualcomm Snapdragon platform.

ARM have a number of processors that they’ve built using ARMv7 architecture and all fall under the ‘Cortex’ brand. There are real-time and highly embedded versions but the ‘A’ versions are the ones that interesting for general mobile computing tasks. ARM have three versions of the CPU. The A8 (currently in products), A9 (high end, multi-core capable due in products in 2010) and A5 (small, low-cost, due in products in late 2010) versions

Licensees.

When final products are completed by licensees you will often see them marketed under different brands. This is where it gets very confusing so I’ve listed most of the main players below along with notes and links to their various products and brands. Note that some ARM licensees are not made public and therefore no information is available.

ARM Cortex A8

ARM has 9 licencees. 8 are public.

Cortex A8 Product brief (PDF)

Licensee notes.

• Ti OMAP 3 platforms 34xx 35xx 36xx  using Cortex A8 CPU core up to 800Mhz. Used in Nokia N900, Archos 5 devices for example.
• Freescale iMX5 family of CPUs based on Cortex A8. Use in the Sharp Netwalker for example. iMX515 is focused at mobile internet and includes graphics co-processing.
• Samsung. S5PC100 application processor includes the Cortex A8 CPU core (E.g. Odroid)
• Samsung / Intrinsity Hummingbird A very specific implementation of the Cortex Core using a tightly defined manufacturing process.
• Zii Labs ZMS08 Core of the ‘stem cell’ computing platform. (Q1 2010 volume shipment) 1Ghz implementation.
• Matsushita (Panasonic) Details unknown.
• PMC-Sierra (storage, switching, routing solutions) Details unknown.

Cortex A9 (Multi-core capable)

Cortex A9 Product information (PDF)

ARM has 9 licencees. 6 are public.

Licensee notes.

• Ti OMAP Dual-core 44xx platform. Full production expected 2H 2010.
• ST Electronics Cortex A8 licensee (set top boxes)
• St Ericsson U8500 Dual Cortex A9/HSPA Modem platform. (Note Nokia and Symbian will be using this and it includes a Mali GPU and 1080p recording capability)
• Broadcom (ARM news. No products announced yet.)
• Nvidia Tegra 2 Dual-core
• NEC Electronics. No information available.
• Update: 28 Jan 2010. It appears that Apple may have licensed Cortex A9 for the iPad A4 CPU. (Source) Update: It’s ARMv7. Apples own implementation.

Cortex A9 MPCore Hard Macro 2Ghz implementation of Cortex A9 using specific TSMC silicon manufacturing process.

Cortex A5

Cortex A5 is a multi-core, low cost ARM V7 implementation previously known as Sparrow.

Link to ARM information

No known implementations at present.

Other ARM v7 implementations:

• Qualcomm Snapdragon platform (QSD8x50) uses single core CPU (Scorpion) based on ARMv7 architecture.
• Qualcomm QSD8672 dual core platform at up to 1.5Ghz.
• Marvell Armada 500 / 510 platform (PDF product brief) Up to 1.2Ghz

Notes for CES 2010 (UPDATED)

Key platform announcements to watch out for at CES 2010. Expect demonstrator products planned for 2H 2010. (All Cortex A9)

• Nvidia Tegra 2 Announced.
• Ti OMAP 44xx No news.
• St Ericsson U8500 Demonstrated by Movial on a set top box.

Expected in MIDs and smartbooks shipping in 1H 2010 on the following platforms. (Single core ARmv7 and Cortex A8 implementations.)

• Freescale iMX5
• Ti OMAP 3
• Qualcomm Snapdragon
• Nvidia Tegra
• Zii Labs ZMS08

Product rumors / expectations: CES 2010.

• Mobinova Elan / N910 on Nvidia Tegra
• Inventec Smartbook
• HP Compaq Airlife 100
• ICD Ultra on Tegra 2
• Google Nexus One smartphone on Snapdragon (Update: Launched)
• ASUS Eee Pad
• Qualcomm Snapdragon-based products
• Freescale netbook and MID
• Lennovo Skylight
• ARM talks about 20 manufacturers in Q1 2010.
• Notion Ink Tablet on Nvidia Tegra ‘T20’ (unknown Nvidia product)
• Archos Smartphone with 4 inch screen on Ti OMAP 3 platform
• Archos 7 HT and next-gen tablets in Summer 2010
• EviGroup Wallet
• C-Motech Mangrove Windows Mobile Tablet on Snapdragon
• Freescale smartbook tablet reference platform.
• Dell Streak rumor.
• Dell Looking Glass rumor
• MSI Tegra-powered dual-screen E-book
• Inbrics MID
• Smits 7″ Android MID

Further reading:

• Carrypad list of consumer internet devices.
• Wikipedia ARM Architecture
• ARM Tech conference: Techcon3 (and virtual classroom)
• ARM ‘Smart Mobile Devices’ blog.
• Bob Morris on the values of an ARM-based netbook.
• Katie Morgan – Roundup of ARM related news from Computex June 2009
• Texas Instruments OMAP and MIDs Whitepaper. (PDF)
• Texas Instruments blog Mobile Momentum.
• UMPCPortal articles mentioning ARM processors
• Independent blog: ARMDevices.net
• Independent blog: ARM News
• Independant blog: Carrypad (consumer products)
• Eric Shorn (VP ARM Processor Marketing) Blog.
• Twitter: ARM Community
• Twitter list: Alban Rampon ARM-Related.
• Podcast: MeetMobility

Update: ARM presentation at CES.

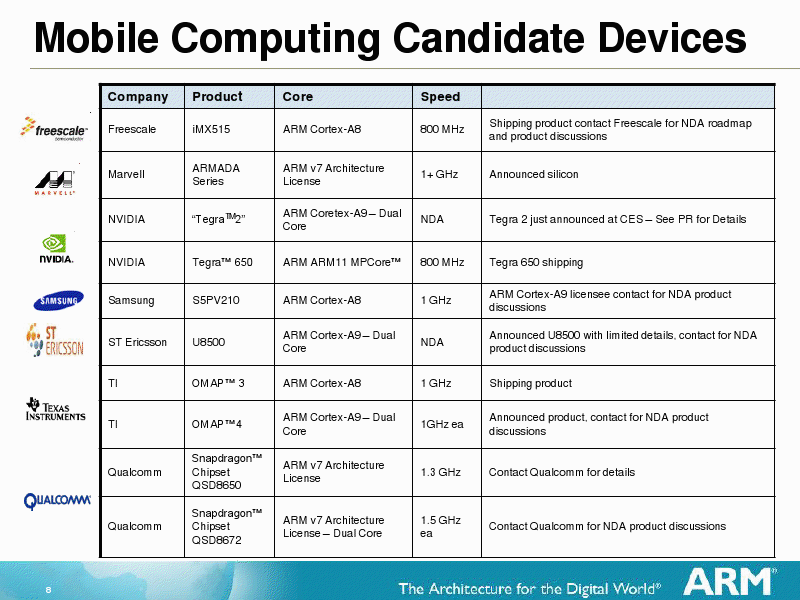

I had a chat with ARM at CES and they followed up by sending me a PDF. Here’s one slide from that PDF that is directly relevant here. It lists ‘candidate’ platforms for Mobile Computing. We listed all of these platforms above but it’s good to know what ARM sees at potential platforms.

Click to Enlarge.

Note to PR agencies for ARM ecosystem partners. Put one twitter/web address in the comments and we’ll add it to the further reading list.

If you find the information useful for your work, please consider a small donation to help us continue the work. UMPCPortal is independent and funded purely through donations and advertising revenue.  Many thanks

Updated: 14th Jan 2010

Updated: 18th Jan 2010 (added ARM slide)

Updated: 28 Jan 2010 (added possible Apple licensee (for A4 processor) information.

Updated: 12 May 2010 with more product information

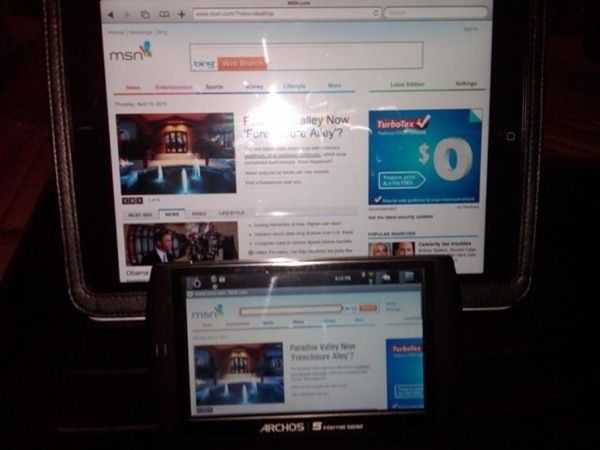

Is it fair to be comparing a $250 5 inch tablet with a $500 9 inch one? Yes because a) people have been asking about it b) comparing anything to a device that gets people thinking, talking and experimenting is worthwhile in my book.

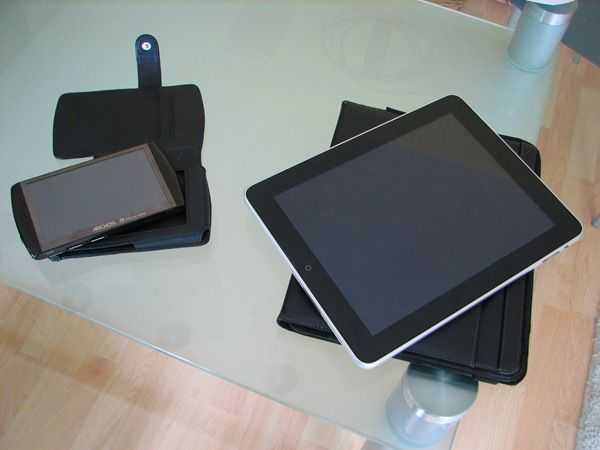

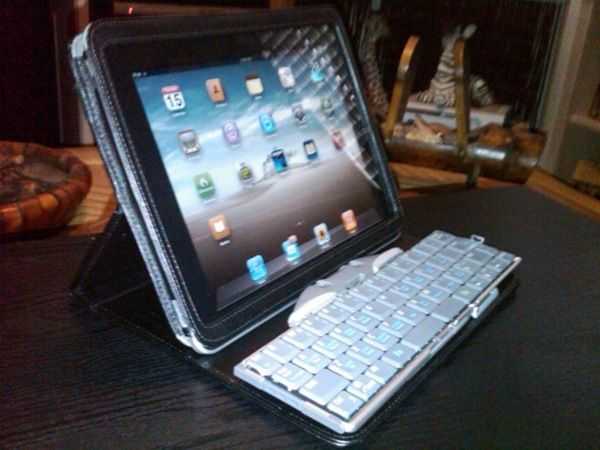

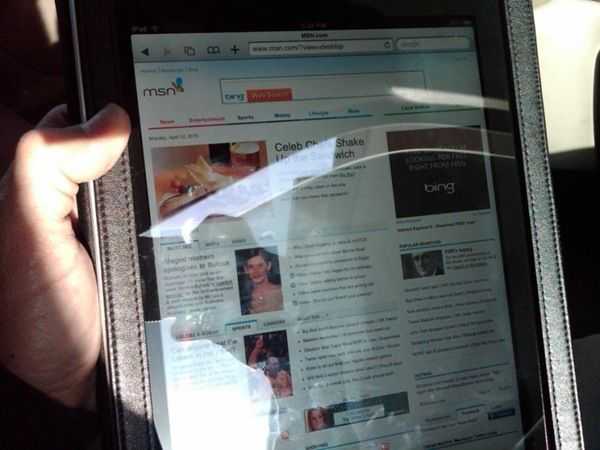

Thanks to the German blog, TouchMeMobile I’ve got an iPad this week and although I don’t intend to do a full review, I am taking the chance to learn and compare as much as possible. This video is a detailed look at the differences and the overlap between two home-focused devices. Music, Video, Internet and E-Reading are at the heart of both the iPad and Archos 5 but each one delivers it in a different way. The Archos 5 is the very personal, lightweight 30cm experience with a lot of flexibility. The iPad is a 1-meter experience with a refined user interface but misses out on some connectivity and flexibility. One is easy to hold in one hand; the other needs two. One has an industry-leading application store; the other something rather disappointing. One can ‘play’ the web and 720p video out via HDMI, the other is limited to analogue video.

In the 25-minute (get yourself a cuppa!) video I discuss the form-factors, the weight, the video capabilities, the app store, communications and e-reading. The two devices do ‘internet entertainment’ in very different ways so I hope this video helps you refine your gadget ‘wanted’ list or buying decision. Feel free to feed back on YouTube or below. For the next week I’ll track it closely and try and answer queries ASAP.

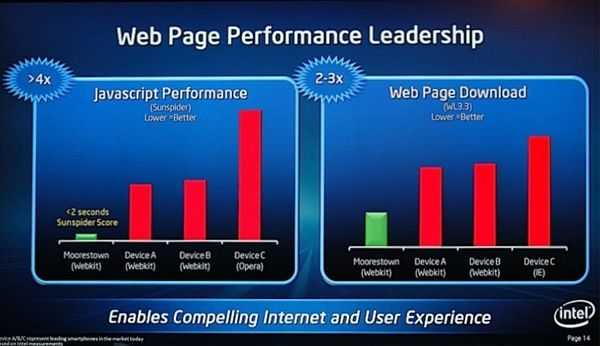

In press events on Tuesday, Intel launched Moorestown and gave journalists their full marketing package on the smartphone and tablet-focused platform.  The key highlight was ‘performance’ and one element I want to focus on is Web browsing.

In tests I’ve been doing with many devices over the last 6 months using the SunSpider javascript benchmark, the Atom CPU, running at 1.3Ghz, whips the A4 CPU into the ground with a >3X speed advantage. Moorestown, with its 1.5Ghz clock looks to improve that to a 4x speed advantage according to the slide below. That’s a huge win for web-based applications implemented in AJAX.

Of course, javascript is only a component of the total time needed to fetch and render the average web page so I decided to do a real world test.

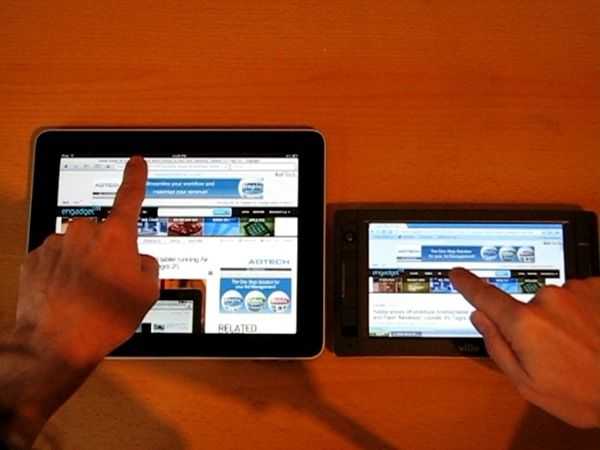

To simulate how Moorestown would perform under web-browsing conditions I took the Intel Atom-based Viliv X70, a 7 inch tablet with a 1024×600 7 inch touchscreen running Windows XP Home, installed the latest Google Chrome, locked the CPU to 800Mhz and did some random web browsing tests. Remember that the Menlow platform used in the X70 is very close to the architecture used on Moorestown. The CPU are GPU are architecturally almost exactly the same. I side-by-sided it with an iPad which is, according to my tests with the Archos 5, X10 and HTC Desire (all running high-end ARM V7 architecture cores) the fastest ARM-based browser solution out there.

The video below shows that the browsing speed with the Viliv at 800Mhz is almost neck and neck. An 800Mhz Atom on a multi-tasking OS matches a 1Ghz A4 on a single-tasting OS. Ignore the UI and product, this is just a test of web page loading speed.

In the second part of the video I boosted the Atom CPU up to 1.3Ghz, the maximum on this platform, to simulate what would happen when a Moorestown smartphone ran at the highest clock-rate of 1.5Ghz. Remember the CPU and GPU architectures in Menlow and Moorestown are the same although Moorestown has a 200Mhz advantage here, can support faster memory and has a faster GPU clock.

The difference is very noticeable with the X70 rendering pages much more quickly, even with Flash enabled. Move to Firefox and disable flash and the difference is even bigger.

I see real-world advantages here. Faster, full Internet experience and a huge advantage for web-based applications and compressed or encoded content although it has to be said that in this high CPU-load scenario, battery drain on the Moorestown platform is likely to be slightly (although not considerably) more.

Remember, we’re ONLY comparing CPU platforms here and in this simulation, the Moorestown platform is showing great potential. It can deliver web pages, process script, decrypt HTTPS, GZIP and images much faster than the best ARM-based solution out there. It also adds multitasking and large memory support too. As a platform, if it delivers on the battery life claims, Moorestown is going to be a great, high-performance smartphone, tablet and even netbook option.

Recommended reading – Why social netbooks have a ‘lock-in’ opportunity. In this article I talk about key features of a smartbook. Many of these apply to a Moorestown/MeeGo-based product.

Recommended reading Anandtech on Moorestown. Detailed with good background research and knowledge.

A ‘source’ has told Techcrunch that the HP Slate project has been stopped based on issues to do with the operating system.

It doesn’t surprise us although naturally, we’ll be sad if this is true. Pricing, weight and features were good although we never expected it to be a ‘performer’ because of experience we’ve had with similar builds.

If this is true, it speaks strongly of the mismatches we have in the market right now. The fact is, dropping Windows 7 on an Intel Menlow platform is a relatively easy thing to do. The OS is rich with support for hardware and includes good touch and class-leading productivity features and 3rd-party software but it is NOT a socially-focused OS and the combination of weighty OS with lightweight platform, doesn’t result in the best user experience. The social element is completely missing from Windows 7 too.

The end result is that the HP Slate is/would have been a mismatch of 2009 hardware and 2009 software in a 2010 marketplace that is moving towards an always-on, dynamic, touch-friendly, social and sensor-aware requirement. Yes, we would have enjoyed the device as a ultra mobile PC but we know that the ultra mobile PC market won’t bring big sales. For a device like the Slate, you’re probably only looking at 100K global sales maximum.

[Our initial HP Slate Analysis]

HP have other projects on the go now. Not only do they have Palm and WebOS to think about but they’re already experimenting with touch, mobility with a dynamic sensor-aware product in the AirLife 100 which is definitely launching. If that works out for them, it makes sense to release a second AirLife without the keyboard, watch, learn and ramp-up the project internally to hit the market in 2011 with exactly the right ingredients.

We hope the news about the slate is wrong but we understand the reasons if it’s true.

Source: Techcrunch.

Many follow-up articles on Techmeme.

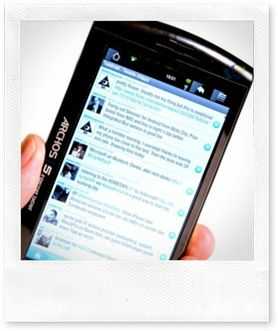

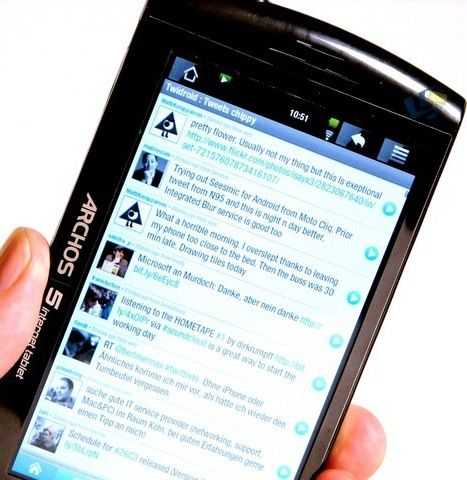

I love the Archos 5 Internet Tablet. Jenn of Pocketables, on the other hand, doesn’t and we’ve been having a to-and-fro on Twitter that’s worth extending here because  it shows how personal opinions can vary widly. We’ve challenged ourselves to write one paragraph on the A5 to say why we think what we think. Before that though, here are a few tweets that kicked the discussion off.

@Smith922 I’ve never had a 5, 6, 7, 9 or 10″ device that beats this around the house. @pocketables will give you a different view though.

@chippy You’re kidding! What about it beats other at-home devices for you? And do you *only* use it at home?

@pocketables yeah. The Archos 5 rarely leaves my home, just fits me perfectly. Quite stable now too. Might get digital a/v dock soon.

@chippy Stability has been OK on mine. I just can’t stand resistive screen, stock OSK, & “ungoogled” Android. Dell Streak, where are you?

@chippy The Archos 5IT is fantastic as a PMP (like previous gens) but I went in expecting an awesome Android MID, which for me it isn’t.

Remember that this is all personal, subjective opinion!

Here’s my summary:

The Archos 5 fits my consumer internet device requirements both physically, through form-factor and font-sizing through to OS and applications and succeeds in doing it in a way that is better than any other home experience I’ve had before. Battery life is fantastic, it looks good and it’s priced at an a level that would have been unthinkable a few years ago. My use-case is home-based Twitter, email, Google Reader, MP3 player, podcatcher, storage, TV-playback, YouTube, ebooks and of course, the browser that supports all the links you receive through email and social apps. When you get a URL through twitter, you want a fast browser to view it! It CAN be better (smoothness, stability, capacitive screen, 3G) but it doesn’t exist yet and that makes the Archos 5 unbeatable in my book.

For Jenn’s summary paragraph, see her post at Pocketables here

Any Archos 5 owners care to offer another one-paragraph perspective?
